Custom Fabrication Projects

BW Feed & Seed Ltd. Bins - New Hamburg, ON

Owner: Mitchel Mill Systems Canada
Consultant: Witzel Dyce Engineering Inc.
Scope: Fabrication, Coatings, Delivery, and Erection

• 27 Agricultural bins

• 8 Load out bins

• 19 Ingredient bins

• 55’ bin bodies with primary hoppers

• Bins and hoppers primed and painted

• Erection completed in two mobilizations

New Hamburg Water Wheel Replacement - New Hamburg, ON

Owner: New Hamburg Board of Trade
Consultant: Stephen B. Clarke & Associates Ltd. Consulting Engineers
Scope: Design, Fabrication, Delivery and Erection

• 50’ Diameter Corten water wheel

• Prefabricated Corten plate hub

• 6” diameter solid center shaft

• Erection completed in one mobilization onto existing column legs

Portland Commons Diagonal Steel Strut - North York, ON

Owner: Carttera – Portland Commons LP
Contractor: Lorvin Steel Ltd.
Scope: Fabrication, Coatings and Delivery

• 11 diagonal steel struts 36” dia. x 1.375” pipe 72’ long fabricated with lugs and baseplates

• Primed

• Finished to AESS 3 Specifications

Angus Glen Community Park Construction - Markham, ON

Owner: City of Markham
Consultant: Dillon Consulting Ltd.
Contractor: Mopal Construction
Scope: Fabrication, Coatings, Delivery, and Erection

• 3 decorative Trellis’ with rolled members

• Galvanized

• Painted 2-coat system

• 1 Stainless Steel decorative Water feature trellis with rolled members

• Decorative entry sign

• Structural steel for washroom building

• Erection completed in two mobilizations

Markham SECC Park – Pavillion Structure - Markham, ON

Consultant: Kavski Engineering Ltd.
Contractor: Cambium Site Contracting
Scope: Design, Fabrication, Delivery and Erection

• 15.9m wide, 9.8m long and 3.5m clearance from grade shade structure

• Roofed and sided

• Painted 2-coat system

• Erection completed in one mobilization

Goderich Performance Stage - Goderich, ON

Owner: Town of Goderich
Consultant: Allan Avis Architects Inc.
Contractor: Westhoek Construction Ltd.
Scope: Design, Fabrication, Coatings, Delivery and Erection

• Decorative structural steel shade structure with rolled members

• Cedar wood plates and purlins

• Polycarbonate roofing system

• Painted 2-coat system

• Erection completed in one mobilization

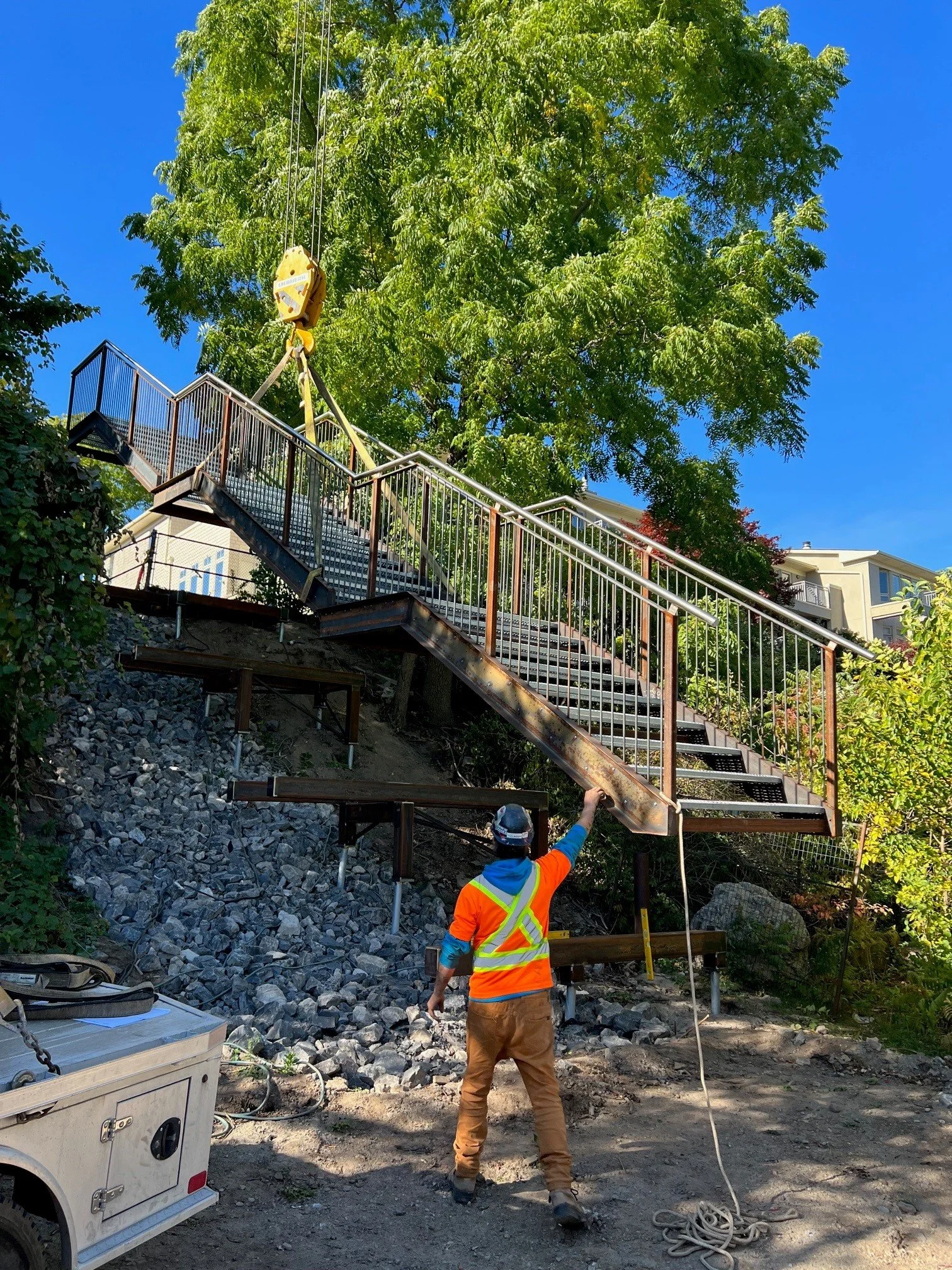

Ramsden City Park Signs and Staircase - Toronto, ON

Owner: City of Toronto
Consultant: Blackwell
Contractor: Mopal Construction Ltd.
Scope: Design, Fabrication, Delivery and Erection

• 117m total length, 2.1m clear width prefabricated truss switchback ramp

• 17.9m access staircase

• Miscellaneous Corten and Stainless-steel architectural features

• Erection completed in multiple mobilizations

East Point Bird Sanctuary – Pavilions & Landscape Elements - Scarborough, ON

Owner: Toronto and Region Conservation Authority
Contractor: Hawkins Contracting Services Ltd.
Scope: Fabrication, Delivery and Erection

• Weathering steel bird blinds profile cut with decorative pattern

• 2 weathering steel main pavilions with water jet panels consisting of 5000 bird cut outs

• Galvanized grating

• Weathering steel edging

• Weathering steel entry signs

• Erection completed in two mobilizations

East Don Trail Tunnel - North York, ON

Owner: Toronto and Region Conservation Authority
Consultant: R.J. Burnside & Associates Ltd.
Contractor: Soncin Construction
Scope: Design, Fabrication, Delivery and Erection

• 185m total length, 4m clear width prefabricated West bridge approach structure

• 52.5m long, 4m clear width prefabricated pedestrian bridge

• Corten mesh enclosing ramp and bridge

• Stainless steel handrail on ramp and bridge

• Erection completed in two mobilizations
